Big Jolt Zhu Rong Extra- Upgraded

Designer

Modding Quality

Performance

Assembly/Maintenance

Parts Duability

3D Printing Files

$70.00 GST included

1 in stock

To offer more choices in colors and finishes, filaments from different brands are used. Some parts of certain blasters cannot be customized because carbon fiber–reinforced PA6CF is used for long-term durability. Each filament has its own advantages and disadvantages. Compared with PLA, PETG is more heat-resistant and less prone to degradation, while PLA tends to produce fewer printing defects. Compared with standard PETG, PETG HF (limited to materials on this website) is slightly less strong but has a more matte, less glossy finish.

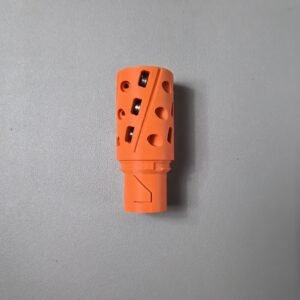

For those who are new to foam dart blasters with a barrel/tube, a BCAR or SCAR is essential to help the dart achieve a more stable flight path and improve accuracy. Make sure you have a BCAR or SCAR. The Jolt Zhurong Extra delivers around 120 FPS with a 1.5 mm spring, and approximately 150 FPS with a 1.6 mm spring. A 10-axis BCAR is generally sufficient. I merely think a 15-axis BCAR looks better.
If sights are not selected, the default configuration includes an angeld connector rail riser.

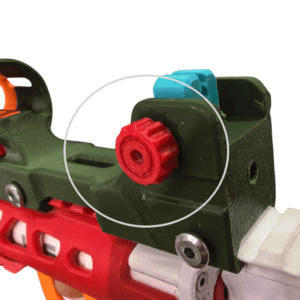

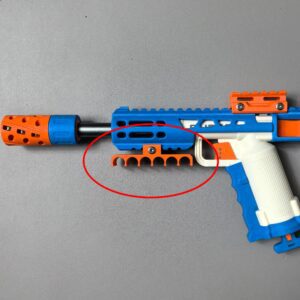

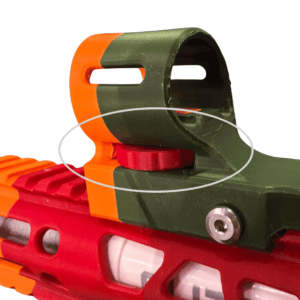

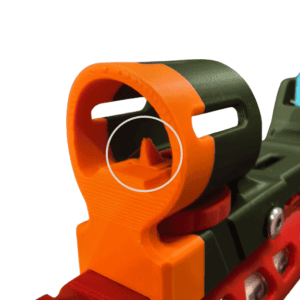

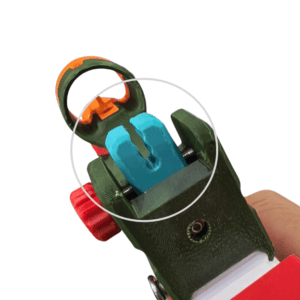

When using our printed Adjustable sights, the dart holder may only be mounted on the bottom rail, which conflict with the foregrip position.
When using our printed Adjustable sights, the dart holder may only be mounted on the bottom rail, which conflict with the foregrip position.
Plunger Head and Priming Rod are not customizable. For durability considerations, the plunger head is printed exclusively in PETG Basic, while the priming rod is made from black PA6-CF.
Stock Button is not customizable. For durability considerations, stock button is made from black PA6-CF.
Stock Button is not customizable. For durability considerations, stock button is made from black PA6-CF.
Product total
Options total
Grand total

Jolt Zhu Rong has quite a few optional parts. To avoid scaring customers off with a high displayed price, the price shown on the product page includes only some of the parts. In fact, the basic version without any optional parts is 30 AUD.

Introduction

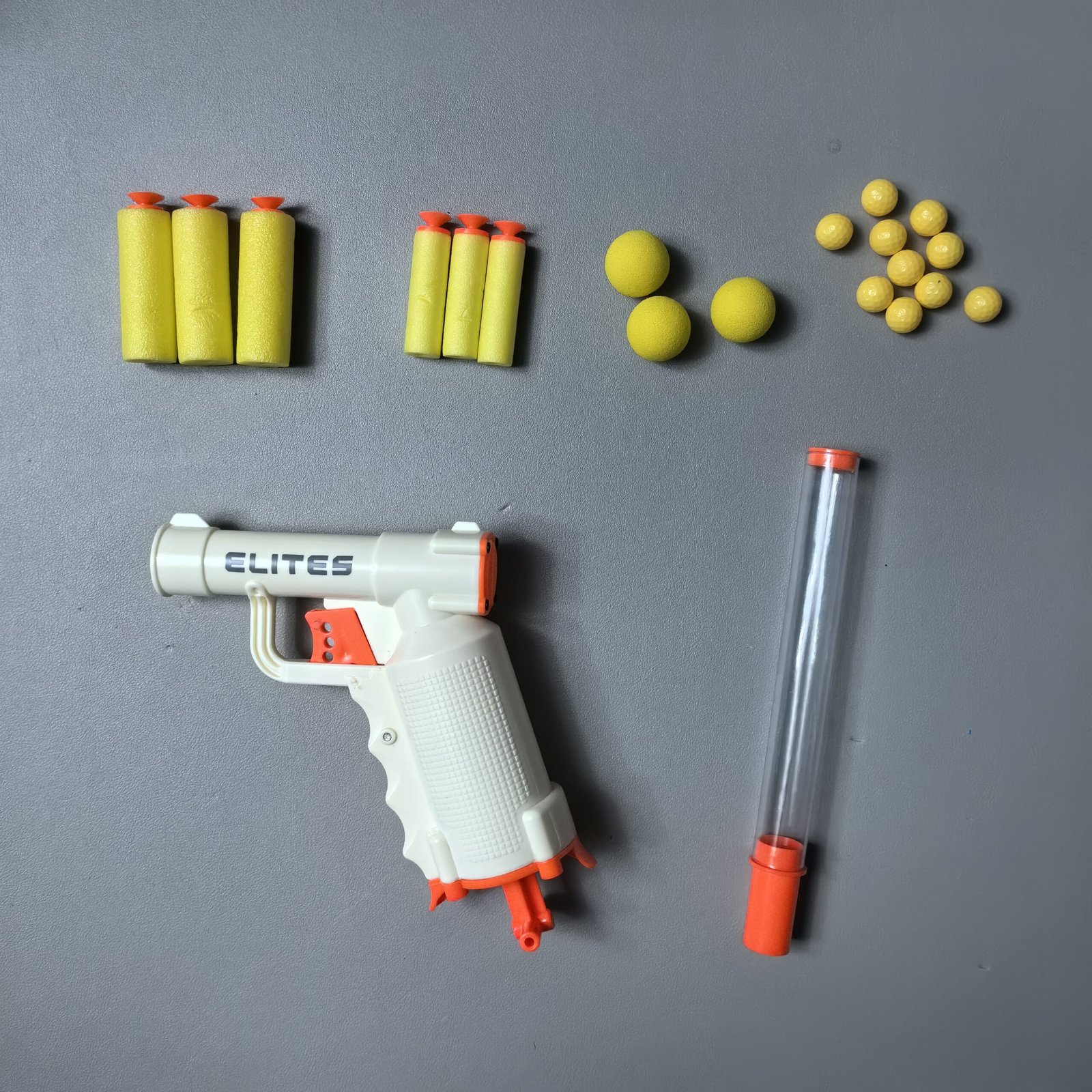

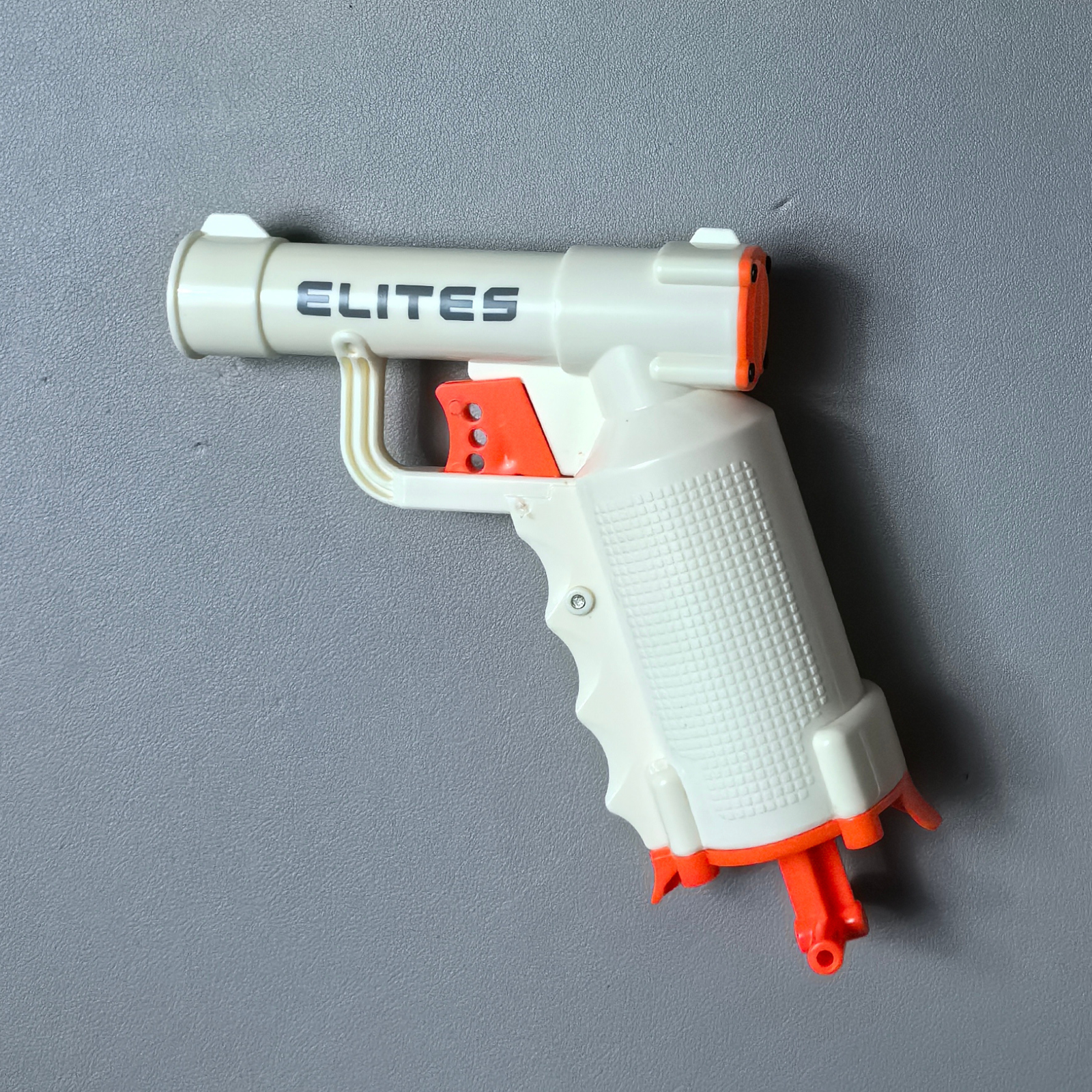

Big Jolt has become extremely popular in China thanks to a large and active modding community. The platform supports a wide variety of play styles, with many designers developing their own interpretations and mechanical solutions. Due to this popularity, Big Jolt has repeatedly sold out on Temu China, with prices increasing multiple times during periods of high demand.

Some of the most well-known Big Jolt mods include the ball-valve mod, Zhu Rong mod, Zhu Rong Extra, and revolver mod, among others.

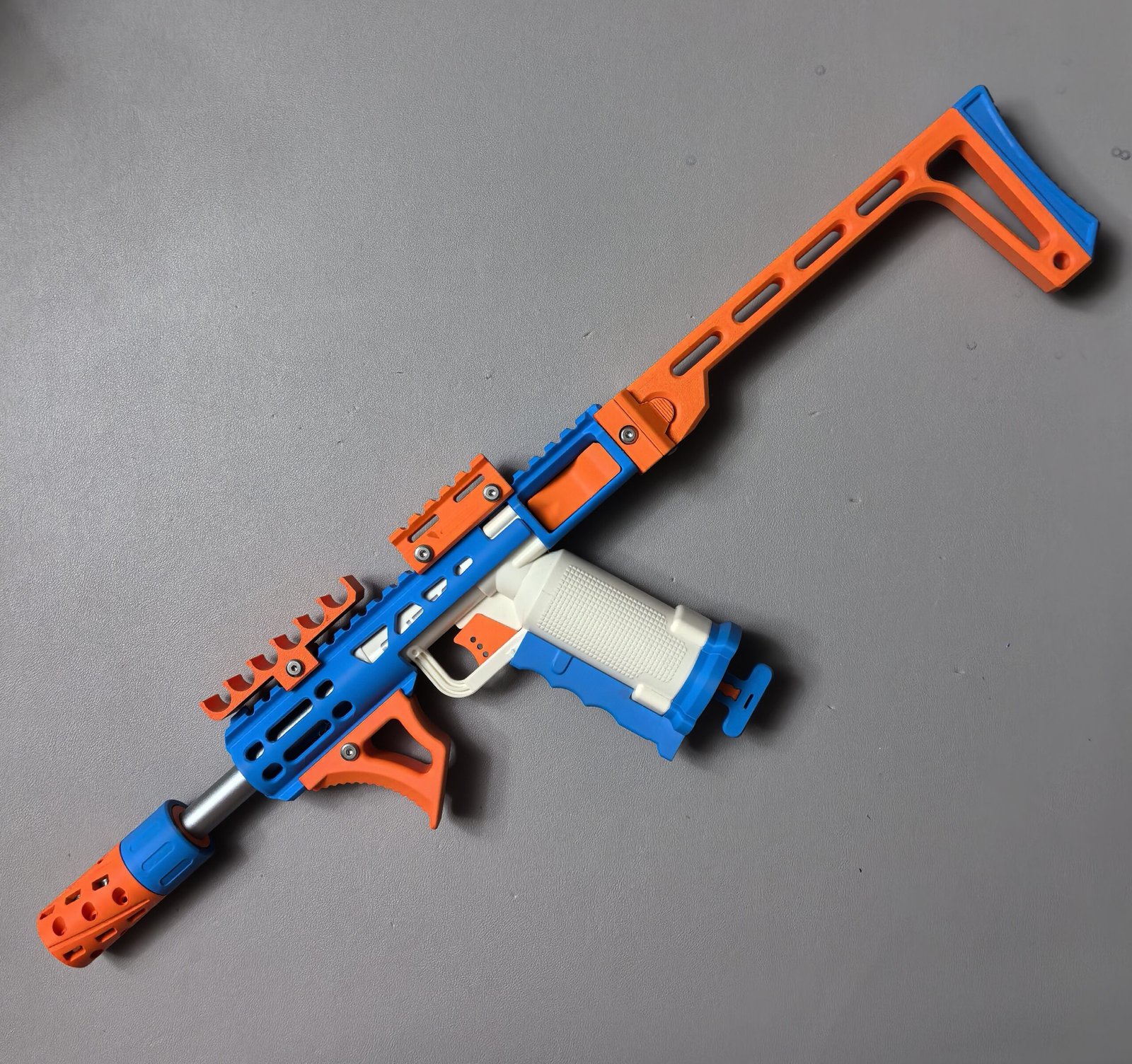

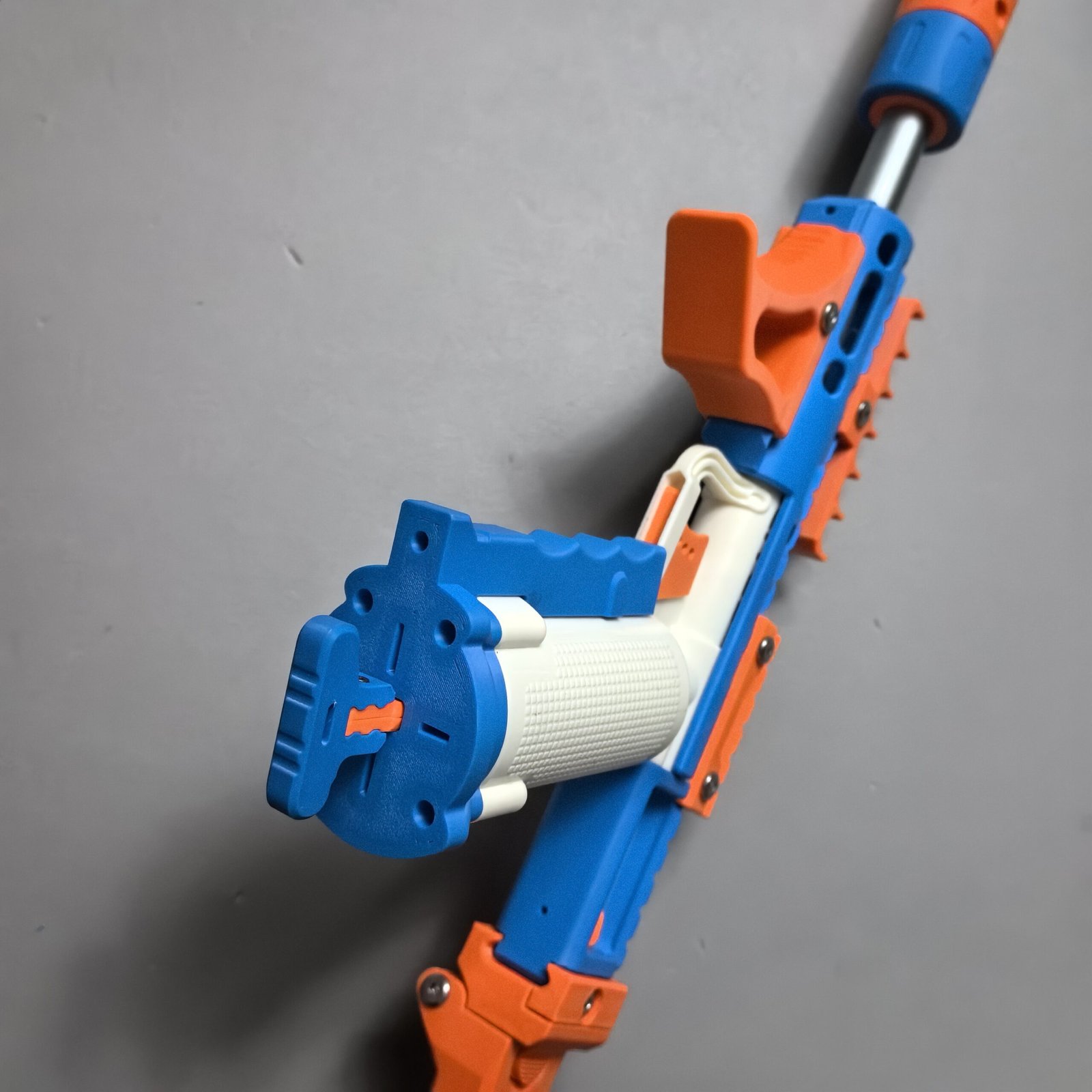

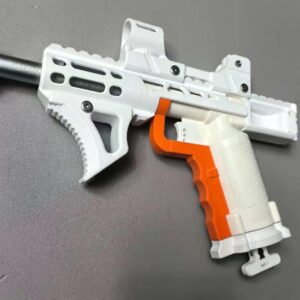

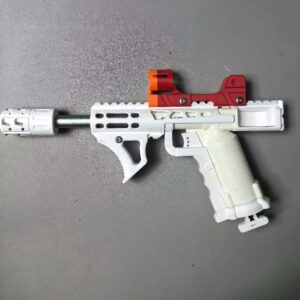

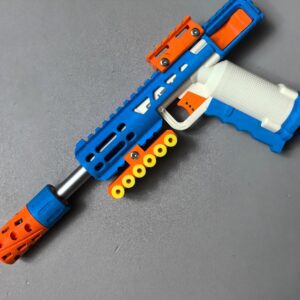

Zhu Rong Extra – AU Edition

Zhu Rong Extra, designed by Mr. Liu, is based on the original Zhu Rong mod, with major changes to the feeding system and interaction style. By intentionally giving up part of the air seal, the design achieves a more interesting and efficient feeding method. This makes it especially suitable for indoor play and casual use, allowing the blaster to be loaded and fired easily at almost any time without strict operation timing.

The version sold here is a further refined iteration of the Extra version, with several small adjustments made to improve overall usability and handling.

Performance (Testing Reference)

Tested muzzle velocity: approximately 145–155 FPS (without BCAR)

145–155 FPS results were obtained using a 1.6 mm main spring (default installed).
A 1.5 mm main spring is also included, producing approximately 120 FPS (without BCAR) and providing easier priming.

Actual performance varies depending on dart type, condition, and individual setup.

All FPS data above was obtained using Worker yellow-body darts.
In testing and general use, Worker yellow-body darts generally achieve slightly higher FPS than purple/orange head darts, likely due to differences in foam thickness and resulting air seal behavior in dart-in-dart breech systems.

⚠️ Important Note on Inner Barrel & Dart Compatibility

Due to manufacturing tolerances, inner barrels from different suppliers may vary slightly, and foam darts are not perfectly consistent in shape.

Based on testing, when using Worker purple-body darts, there is a chance that the dart may slide out of the inner barrel during loading.

For best reliability and consistency with the stated performance figures, Worker yellow-body darts, which fit more tightly with the inner barrel, are recommended.

Known Limitations

The following limitations are inherent to the current design at this stage:

The trigger has no pre-travel take-up, resulting in a more abrupt firing feel.

The 3D-printed trigger with a return spring produces a firmer trigger pull, which may affect accuracy. This aspect may be improved in future revisions.

The original factory trigger offers a softer pull but suffers from poor long-term durability.

Designer's Overview

Mr. Liu gives a short explanation of the model’s design and how its foam dart feeding system works.
